GARAGE WALLING

Lynk & Co

M7Elite walling with data engineering

Lynk & Co 2

M7Elite walling with data engineering

Our elite-designed seamless walling system, the M7Elite is growing to become a leading display system for automotive and exhibitions. Alsofrequently used as (temporary) structures in airports and home garages.Thanks to simple features such as a foot levelling system and our easyinterlocking, build and breakdown times are reduced when compared to traditional systems, giving you and your team more time to focus elsewhere.

M7Elite panels can also be used as 4,2m high truck fascias.

STANDARD PANEL SIZES:
2100mm (H) x 1000mm (W)
2100mm (H) x 500mm (W)
2100mm (H) x 250mm (W)

PANEL THICKNESS: 16mm HoneycombCompositePanel
WEIGHT: 2.1m x 1m @ 13.0 kgs

STANDARD COLOUR: High-glosswhite(RAL 9016)

SmartFrame walling

Our DRD - SmartFrame is a stand-alone frame with twist spring locks to connect fast.
It can be supplied with D-bond or forex panels that sit inside the frame with velcro,
another option is to span fabric inside the framework.

The total has a seamless look and only show a 5mm aluminium stoke between 2 panels.
We have been using them as a truck fascia, exhibition stand, garage walling and in stores.

STANDARD PANEL SIZES:
2480mm (H) x 992mm (W)
1984mm (H) x 992mm (W)
1984mm (H) x 496mm (W)

PANEL THICKNESS: 46 mm
WEIGHT: Depending on panel choice

STANDARD COLOUR: White panels

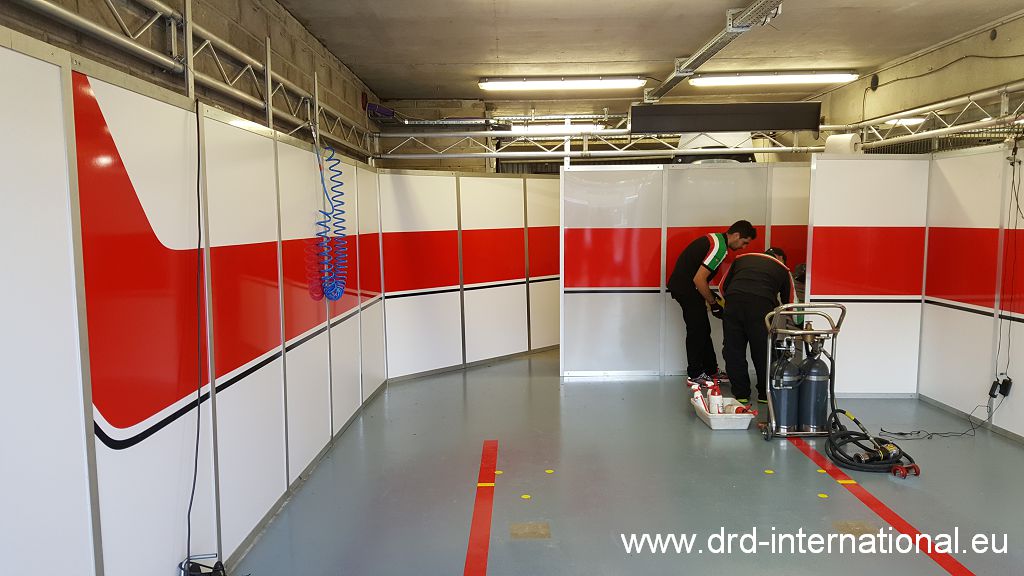

Basic Framework walling (MODULAR)

Our DRD - Pole and panel system finds his origin in exhibition stand building.
Using a 46mm Aluminium framework where you slide in a 5 or 6mm forex panel.

Standard aluminium framework can also be supplied in any RAL powder-coated colour.
Also, the standard forex white panels can be supplied in various colours.

We have been using them as a truck fascia, exhibition stand, garage walling and in stores.

STANDARD UPRIGHT:
2100mm (H) x 46mm (W) - halve round profile

STANDARD BEAM:
954mm (L) x 46mm (H)

STANDARD PANEL:
2022mm (H) x 966mm (W)
